BLUETTI RV5 Power System Vanlife Review
Published: December 8, 2025

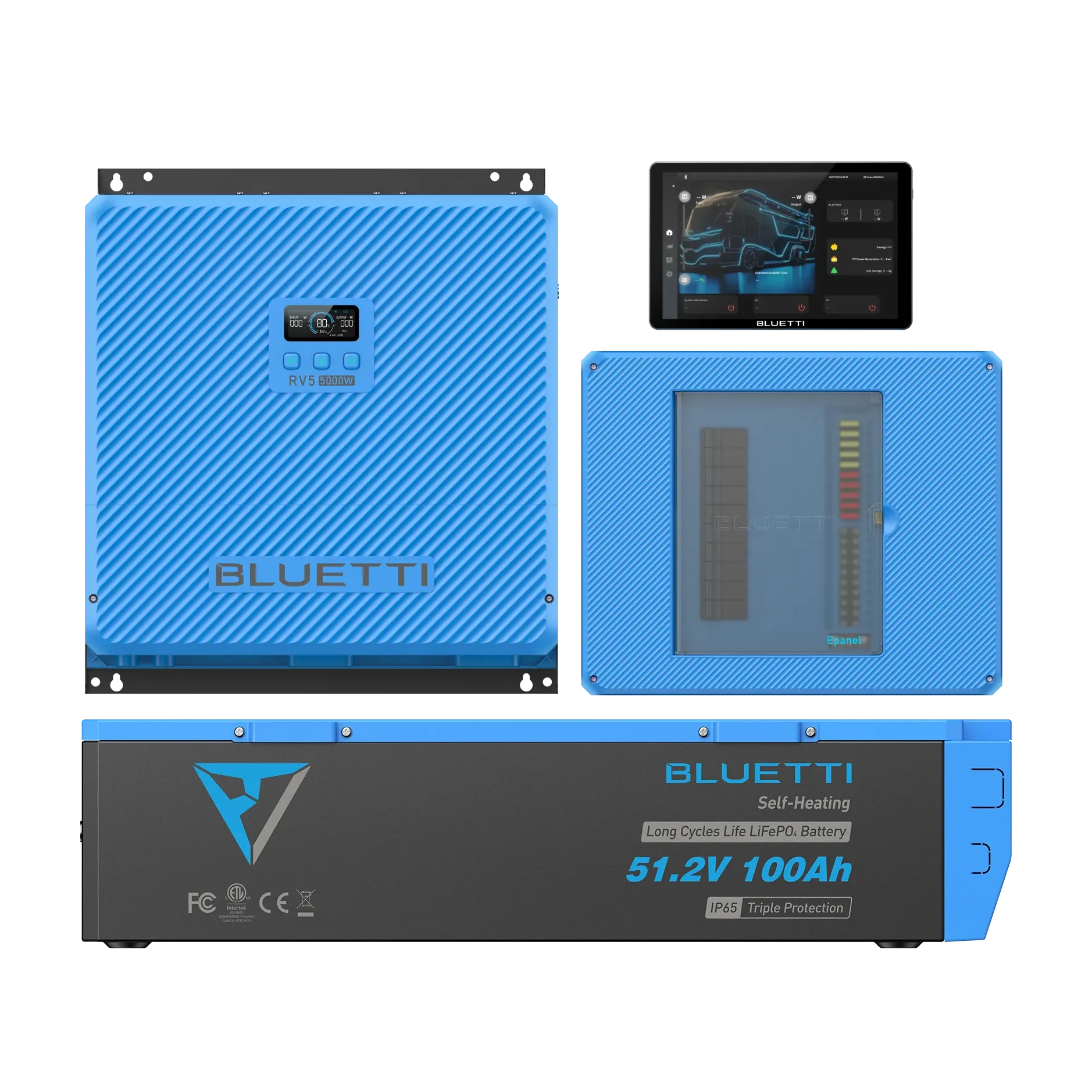

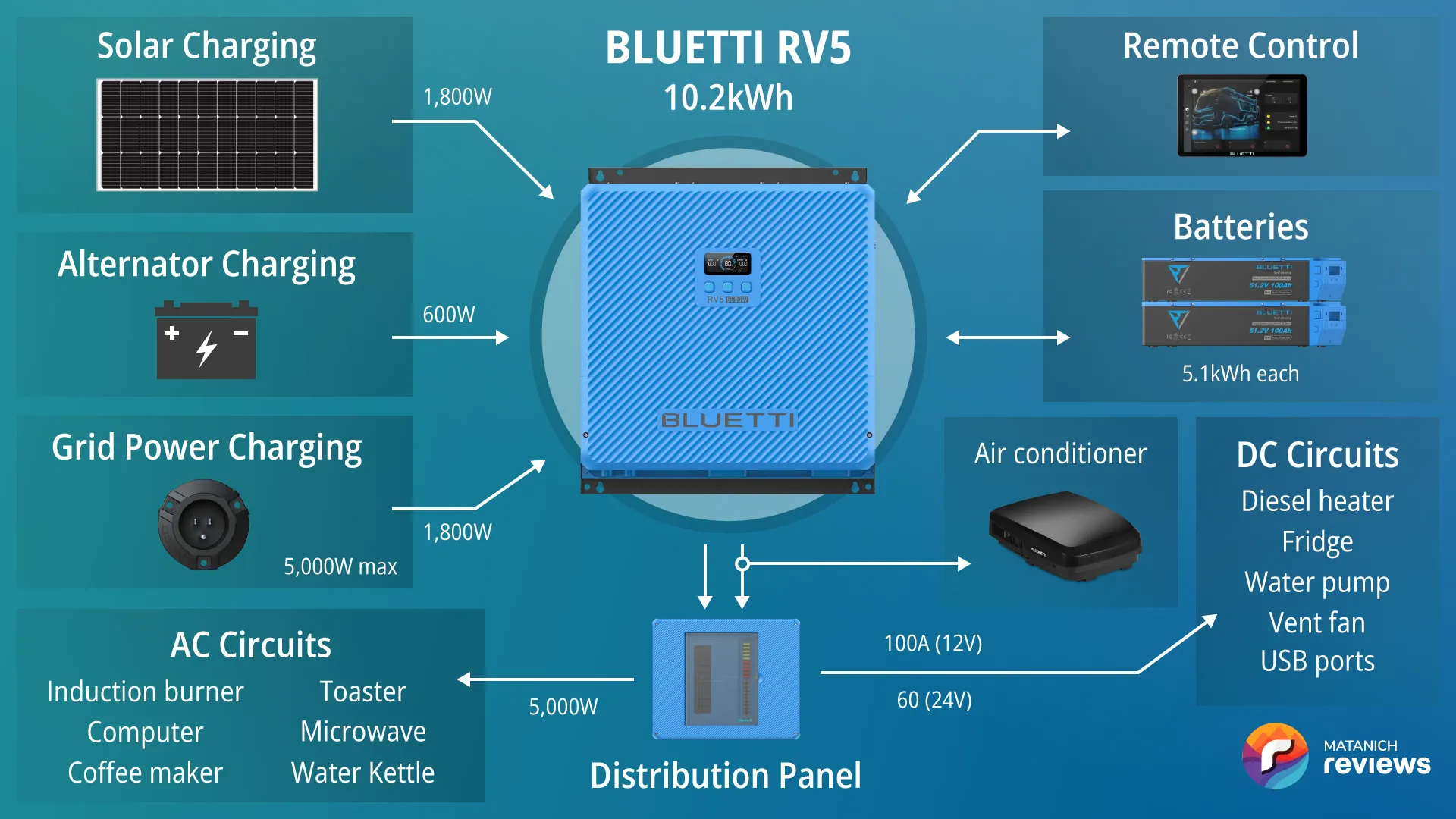

The Bluetti RV5 enters the modular RV power market as a cost-effective challenger to established kits. It delivers a robust 48V battery architecture and 5,000W continuous AC output, with installation simplified by the fact that all required cabling is included.
While it positions itself as a competitor to the EcoFlow Power Kit or DIY Victron or Renogy builds, potential buyers need to look closely at the specs. It is a powerful system, but it is held back by some baffling design limitations that may disqualify it for specific off-grid setups.
Thanks for supporting small independent creators. Affiliate links may earn me a small commission at no extra cost to you (info).
Highlights
- Core Component: RV5 Power Hub (inverter, charger, dual MPPT)
- Optional Components:
- Epanel Smart Distribution Panel
- Epad Control Screen
- B4810 LiFePO₄ Battery (5.12kWh)
- Adaptable: Supports 3rd party components
- AC Output: 5,000W
- DC Output: 100A (12V), 60A (24V)
- 4 Charging Methods: solar, alternator, shore power, EV station
- Warranty: 5-years
- Price Range: Highly dependent on configuration
- Hub: $1,399
- Hub+Battery+Panel+Screen: $3,799
- Hub+Battery(x2)+Panel+Screen: $5,499

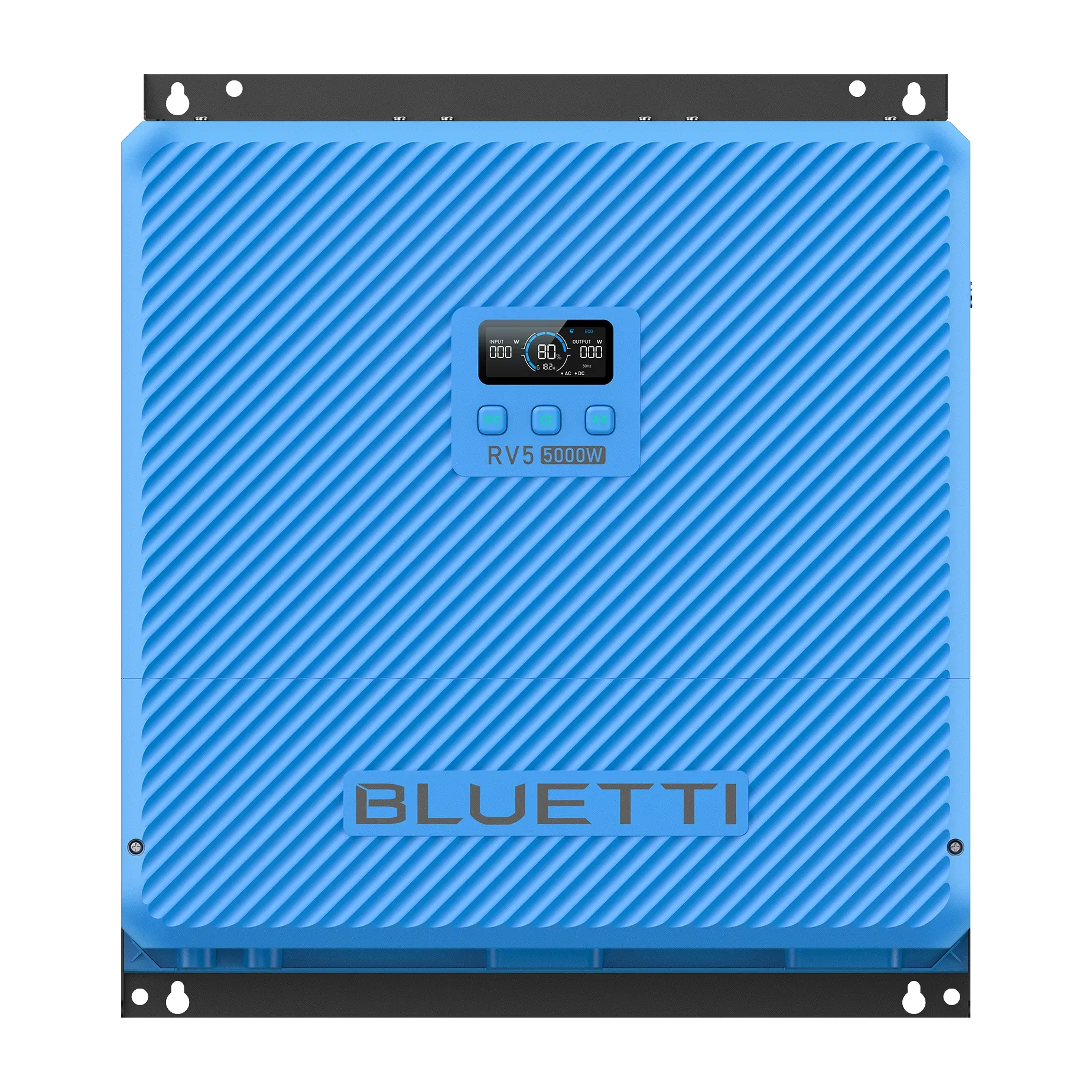

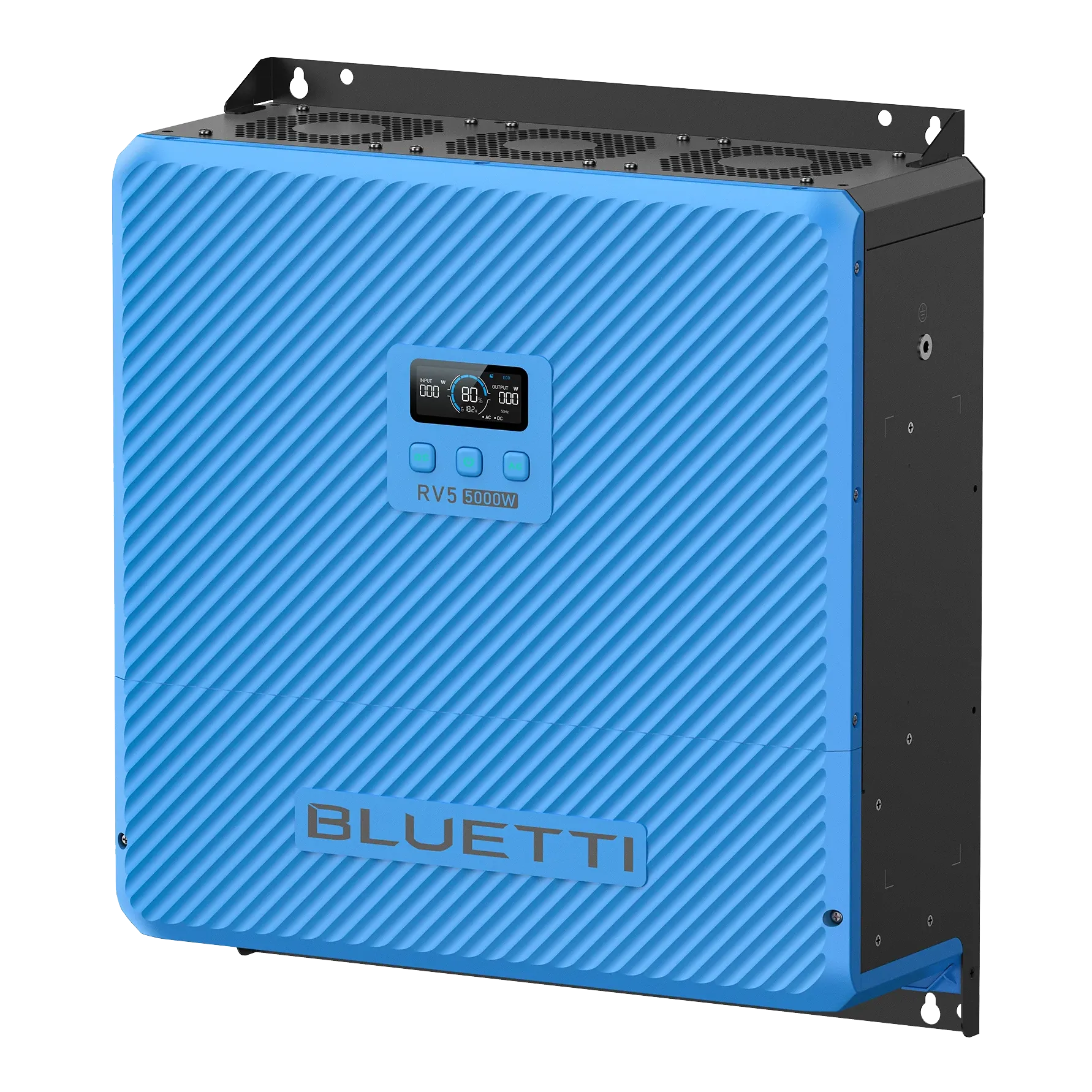

RV5: Power Hub
Details | Manual | Setup Guide
The Bluetti RV5 Power Hub delivers 5,000W of continuous AC output in a rugged, UL-certified, IP65-rated chassis designed for advanced users.
- Price: $1,399
- System Battery Voltage: 48V
Solar Inputs
The solar input’s low 50V maximum forces panels to be wired in parallel and can quickly exceed what standard MC4 connectors are rated for. PV2 must be dedicated to either solar or alternator charging, but not both (PV = photovoltaic).
- Ports PV1/PV2: 12-50V⎓50A (1,800W) each
Alternator Charging
While compatible with both 12V and 24V alternators, performance on standard 12V systems is underwhelming. Capped at 600W, it lags behind competitors delivering 1,000W+. At this rate, recharging the 5kWh battery from empty requires a grueling 8.5 hours of driving.
- Port PV2: 12-14.4V⎓50A (600W) / 24-28.8V⎓50A (1,200W)
AC Inputs
With dual AC input modes, the RV5 can recharge quickly from standard shore power or 208V EV hookups.
- Standard: 120V~42A
- EV: 208V/240V~22A
AC Output
The RV5 delivers 5,000W (120V~42A) AC output, providing household‑grade power for appliances and electronics.
DC Output
With up to 100A DC output, the RV5 delivers more current than most power stations, enough to power all your DC needs.
- 12V⎓100A (1,360W)
- 24V⎓60A (1,620W)

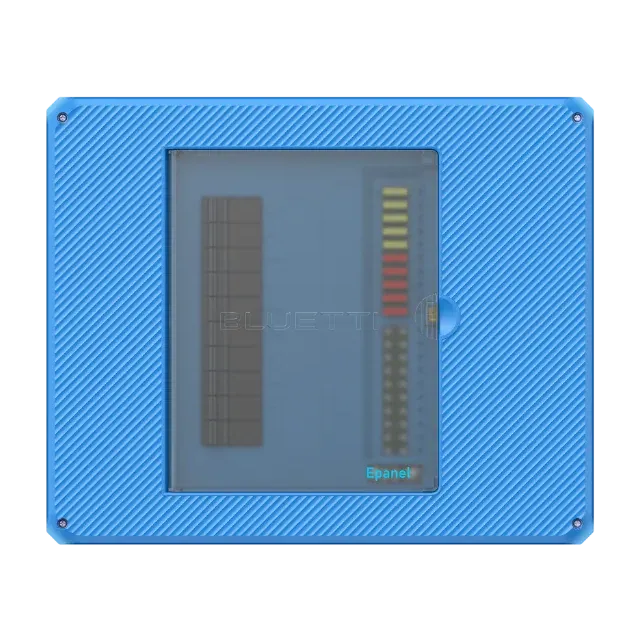

Epanel: Smart Distribution Panel
The Epanel distributes AC and DC power across the system and includes smart circuits controllable from the control screen or app.
- Price: $499
AC Circuits
- AC Input: 120V/240V, 50A Max (two ports)
- AC Output: 120V, 30A Max per circuit (4 standard outlets, 4 smart outlets)
DC Circuits
- Input: 10V to 30V, 100A Max
- Output: 10V to 30V, 20A Max per circuit (6 smart circuits, 14 standard circuits)
- Fuse Type: Blade
The Epanel is not a turnkey solution right out of the box. You must still handle the "last mile" of the installation, which includes sourcing and installing your own AC breakers to match your specific circuits. Additionally, you are responsible for running AC and DC cabling to appliances, sizing wires correctly to prevent voltage drop, and installing all outlets and switches throughout the vehicle.

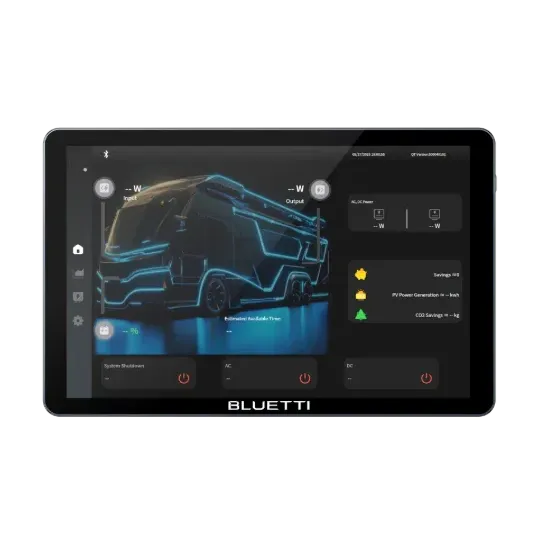

Epad: Control Screen
Beyond serving as a control display, the Epad includes sensor inputs for temperature probes and tank level sensors.
- Price: $399
- Display: 10.1" color LCD touchscreen
- Analog Inputs: 3x for resistive level sensors / 3x for NTC temperature sensor probe
- Digital Inputs: 2x
- Dry Contact Outputs: 2x

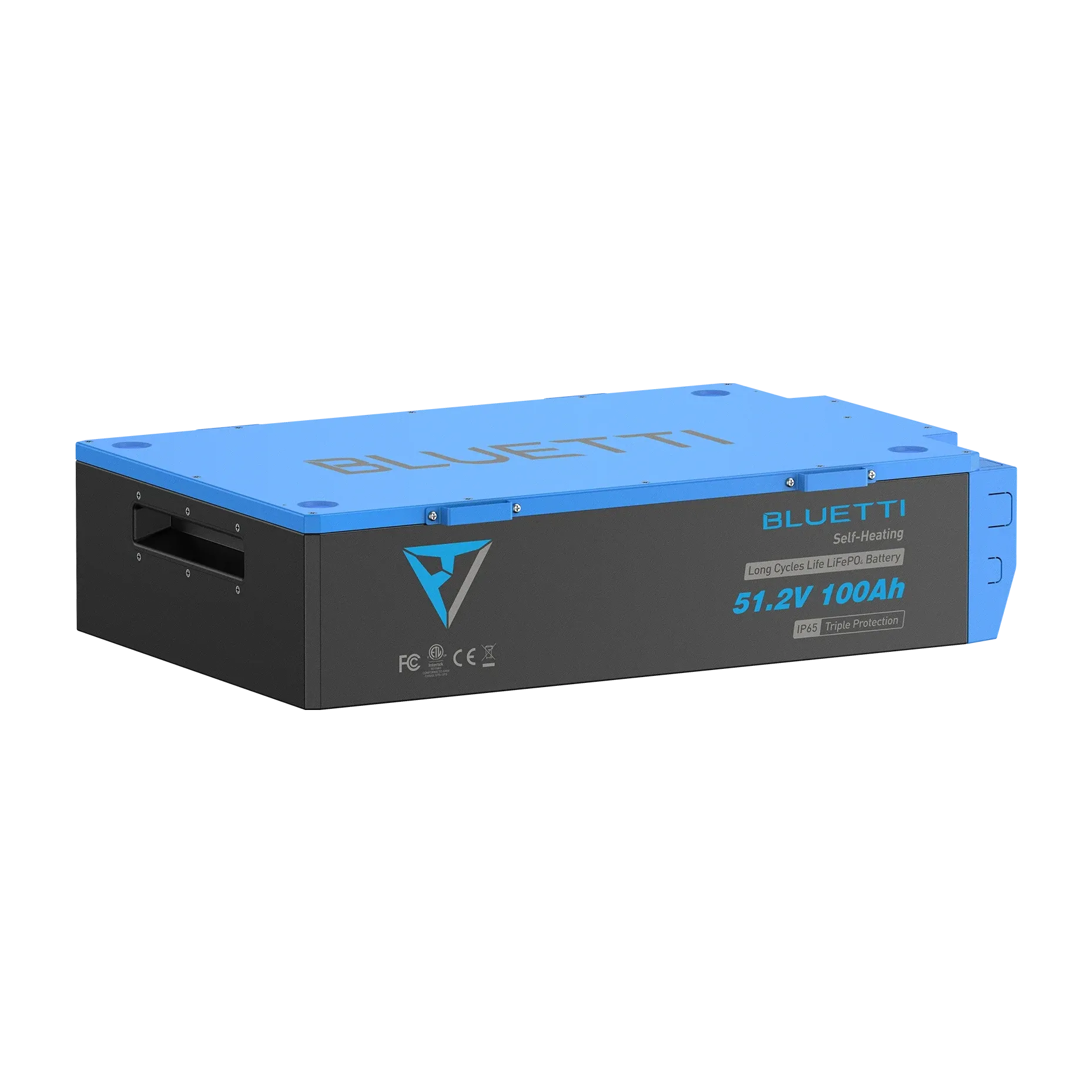

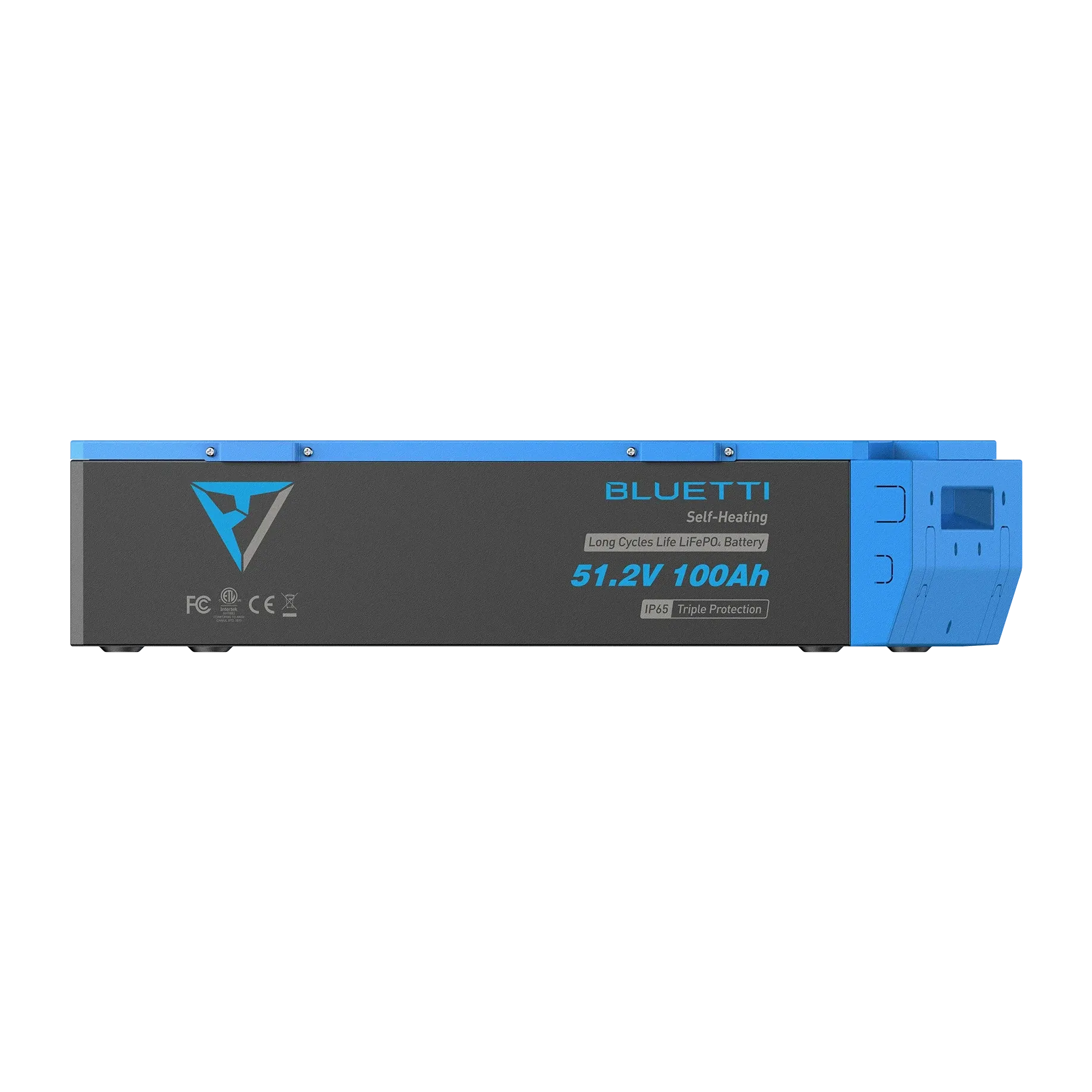

B4810: LiFePO₄ Battery
The B4810 battery is built for all‑season reliability, with self‑heating that keeps it performing even in freezing conditions.
- Price: $1,799
- Capacity: 5.12 kWh (51.2V, 100Ah)
- Operating Voltage: 40-58.4V
- Charging Current: 50 A (Recommended), 100 A Max
- Discharging Current: 100 A Max
- Peak Discharging Current: 200 A @ 30 s
Accessories

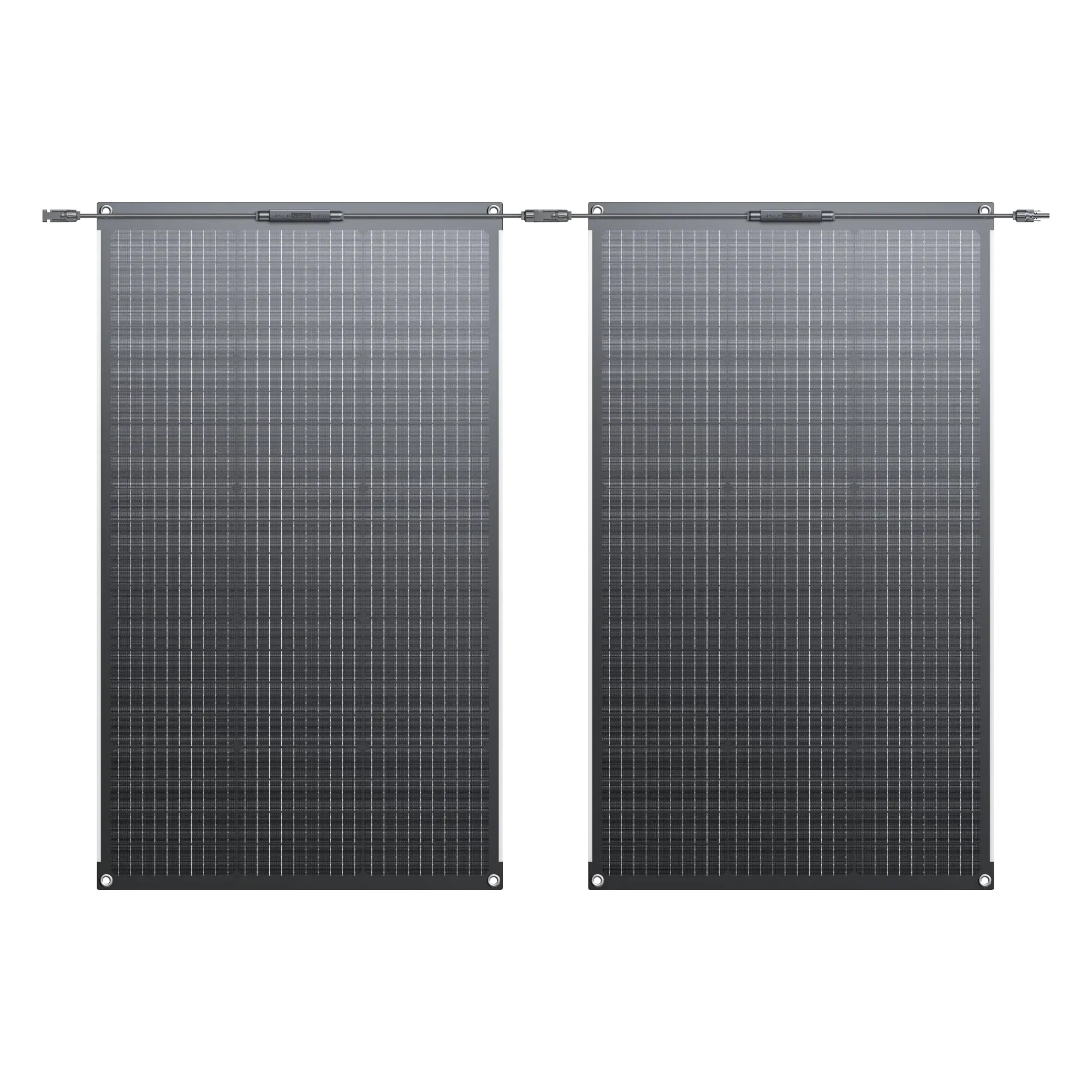

Solar Panels
While Bluetti provides various solar panel options, always prioritize panels that physically fit your vehicle; using other reputable brands is perfectly fine. The following panels are often bundled with the RV5 system.
Price: $249 (2x)
Edock: Battery Expansion
Built for third‑party battery compatibility and large‑scale expansion, the Edock serves as the communication interface required for integrating external devices and managing parallel connections, though it is not yet available for purchase.
The RV5 supports parallel connection of as many as 24 batteries, but setups larger than 8 require Edock interface boxes, each capable of handling communication for 8 units.
Limitations & Suggestions
While the RV5 is a capable system, there are a few unexpected limitations worth noting if you’re considering it for your setup:
- Solar Voltage: It's baffling that Bluetti markets the RV5 as a high-efficiency 48V system yet restricts solar input to a low 50V. This effectively blocks efficient high-voltage series arrays and forces the user back into complex parallel wiring. As demonstrated by Victron, 150V MPPTs can fully meet UL1741 safety standards while offering far better real-world usability (see certifications: 1, 2).
- Solar Amperage: The resulting 50A input exceeds the standard 30A rating of most MC4 connectors. This mismatch creates potential safety issues and necessitates heavy-gauge cabling and branch connectors that negate some of the system's promised simplicity. While parallel wiring is often defended for better shading resilience, this benefit is overstated. Modern panels utilize bypass diodes to handle partial shading effectively without the need for high-amperage setups.
- Single Solar Input: Because PV2 is often reserved for alternator charging, the RV5 is effectively limited to a single solar array. This reduces flexibility for multi‑array setups.
- Altitude: The manuals list an operating altitude of ≤6,561 ft (2,000 m). If accurate, this could be a significant limitation for outdoor enthusiasts who travel or camp at higher elevations.
My Verdict
Bluetti RV5 is a capable and affordable entry in the modular RV power market. It offers a professional‑style installation experience, solid AC and DC output, and a simplified setup at a lower price point than premium kits. EcoFlow's Power Kit is more polished overall, but it costs more and supports fewer third‑party components, giving RV5 an edge.
If you want a system that feels professional without the premium price tag, the RV5 is worth considering. It is a strong contender for vanlife power setups, provided you are aware of its limitations and willing to work within them.
